basically Sorter

Pour in mixed LEGO® pieces. The Sorter separates them, photographs each one, identifies its part and color, and drops it in a bin defined by your rules.

The Brick Sorting Machine

Reserve your spot How it works

The Sorter

Already sorting

A regularly active, growing fleet of development Sorters around the world is already sorting bricks.

As of 15 September 2026

612,706

pieces processed

17

machines in the fleet

3,980

distinct parts, in 92 colors

1 Jun25 Jul16 Sept

More Fleet Stats

YouTube Instagram Discord GitHub

How it works

Step 1

Pour in bulk

Bucket

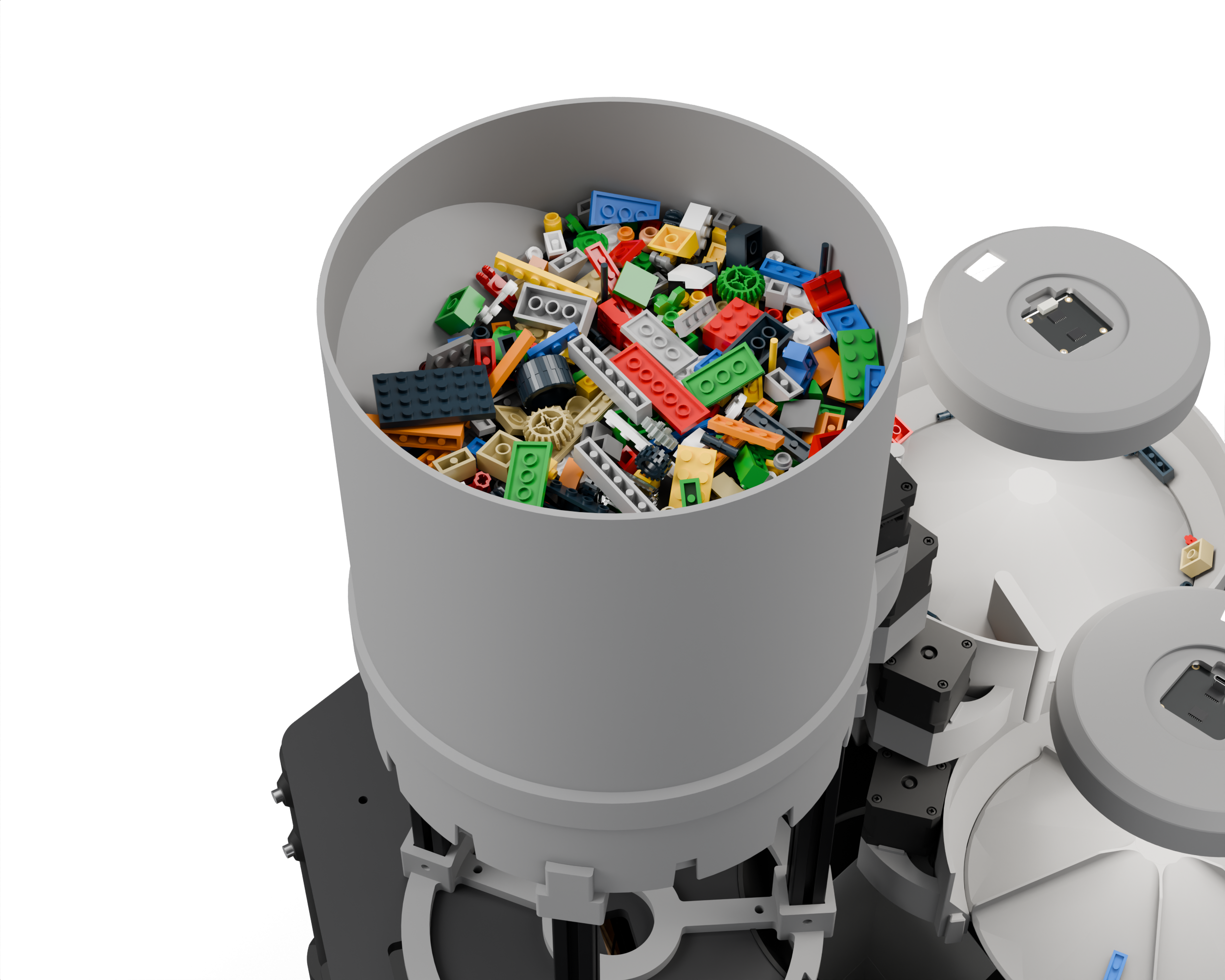

Bulk pieces are fed in through a bucket at the top.
Step 2

Separate

Rotary feeders

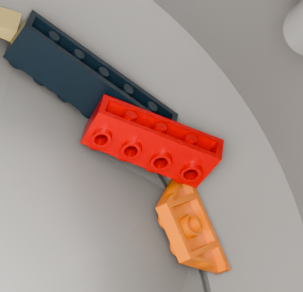

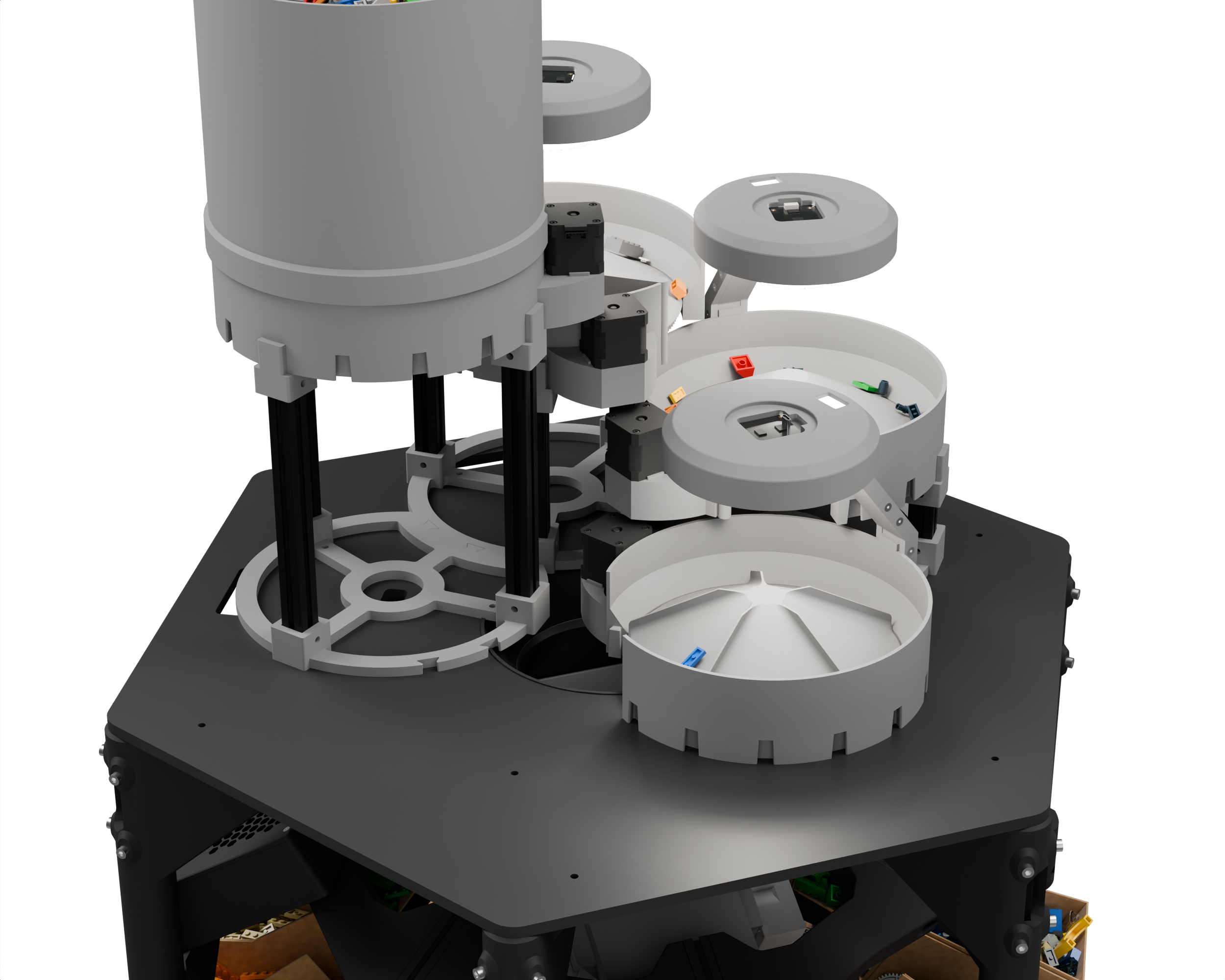

Our rotary feeders, intelligently controlled by cameras, untangle clumps of pieces.
Step 3

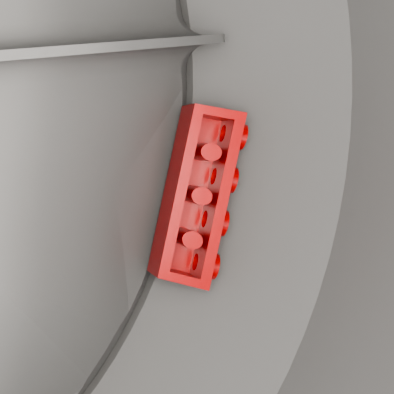

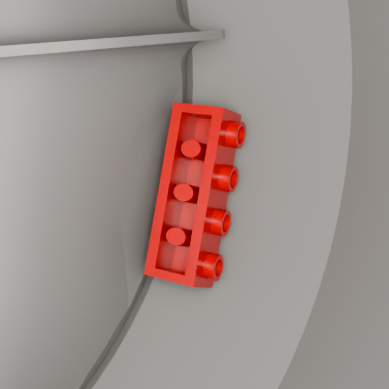

Classify
Channel 4
Classified

94%

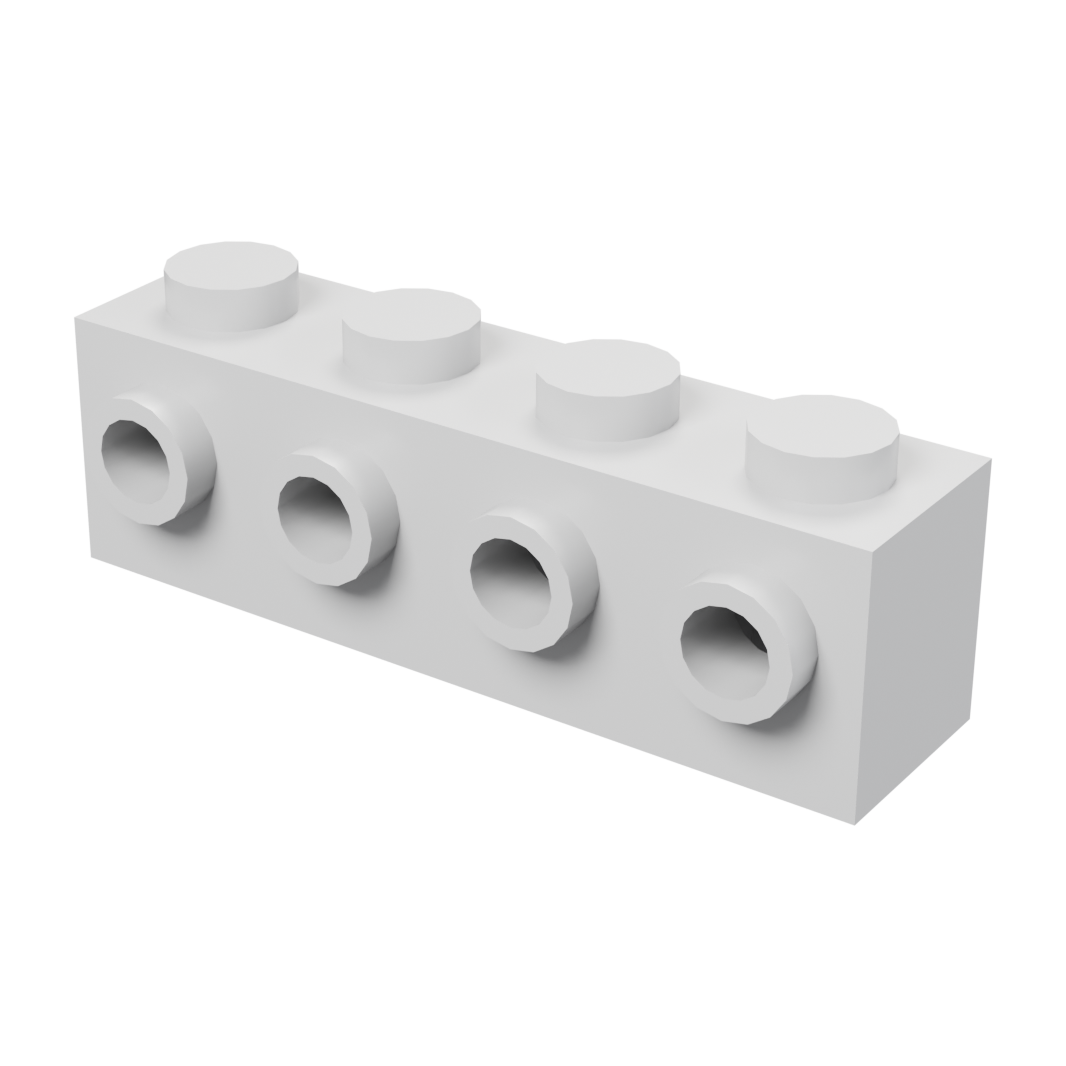

Brick, Modified 1 x 4 with 4 Studs on 1 Side

#30414 · Brick, Modified

Red (5)

C4
C4
C4
C4
C3
C3
C3
C3
C2
C2
C2
C2

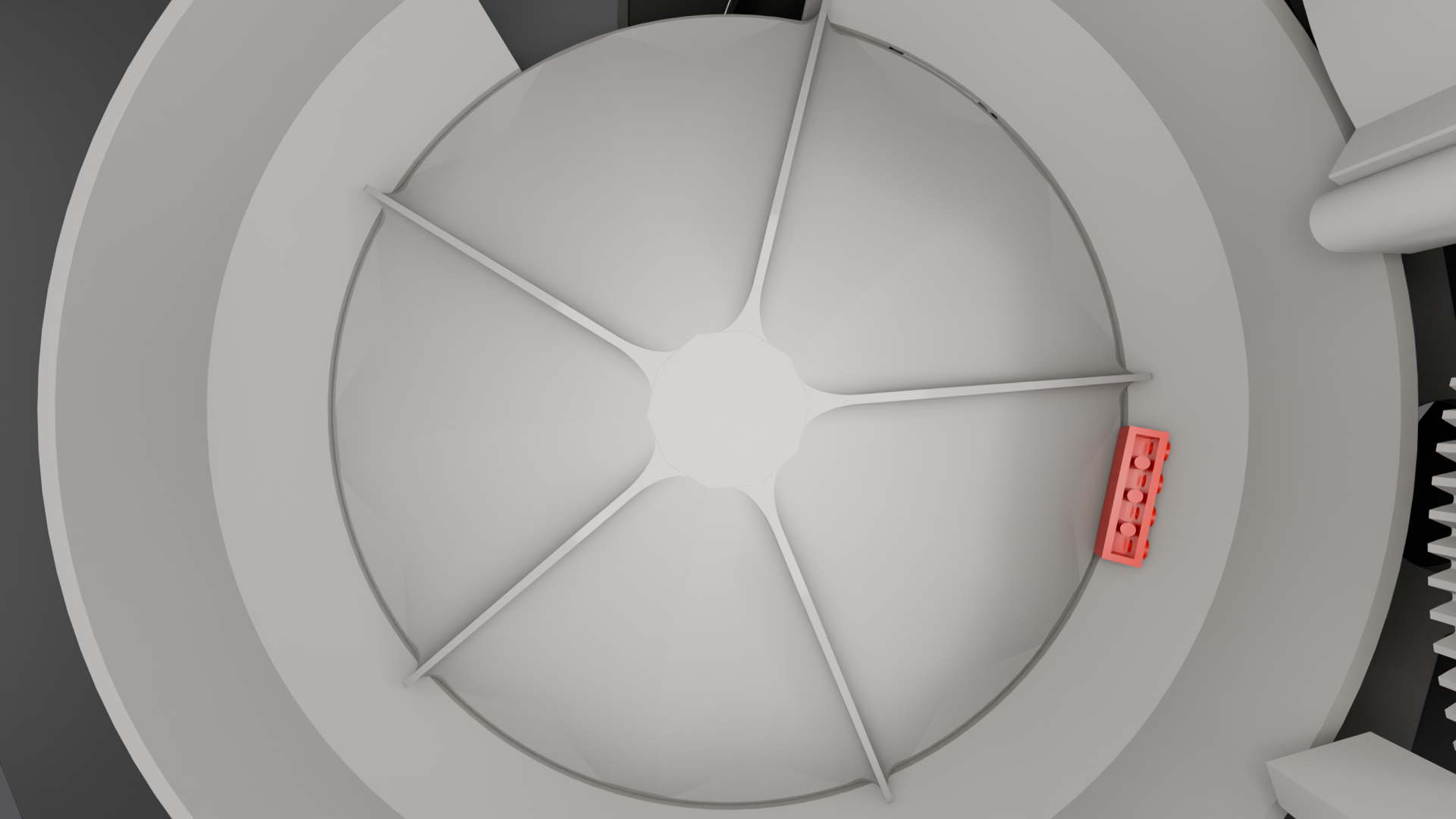

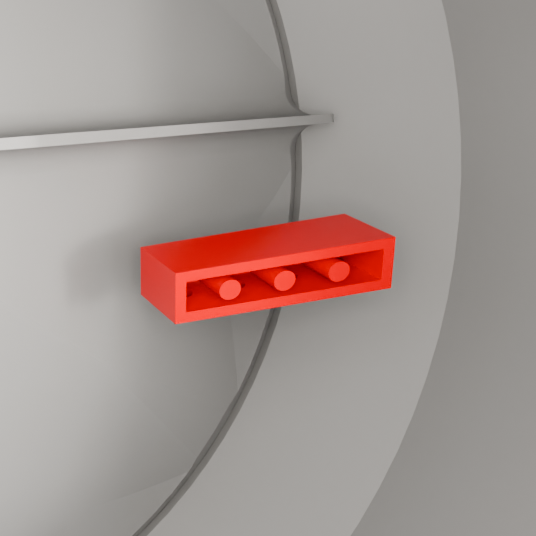

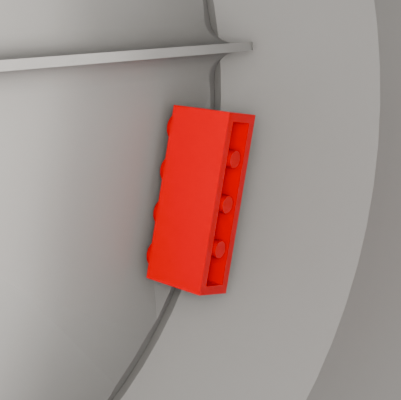

Singulated pieces are fed into a final classification stage, which uses Brickognize to classify them by exact part and color.
Step 4

Categorize
Brick, Modified 1 x 4 with 4 Studs on 1 Side

Red · #30414
Sorting profile

Bricks by kind
Minifigures
Printed parts
Bricks with studs on the side name contains “Studs on” Layer 2, Bin 8
Bricks
Plates
According to user-defined rules, the piece is categorized, and that category is allocated a bin.
Step 5

Put in a bin

Into the bin

The chute rotates to the chosen bin. A door folds down to guide the falling piece into it.

The machine

Bins sit in stacked rings around a rotating chute. Each layer holds 18 small or 12 medium bins, and layers can be mixed.

The design files and the code are public.

The Sorter cut away, the chute down its middle — Cut away

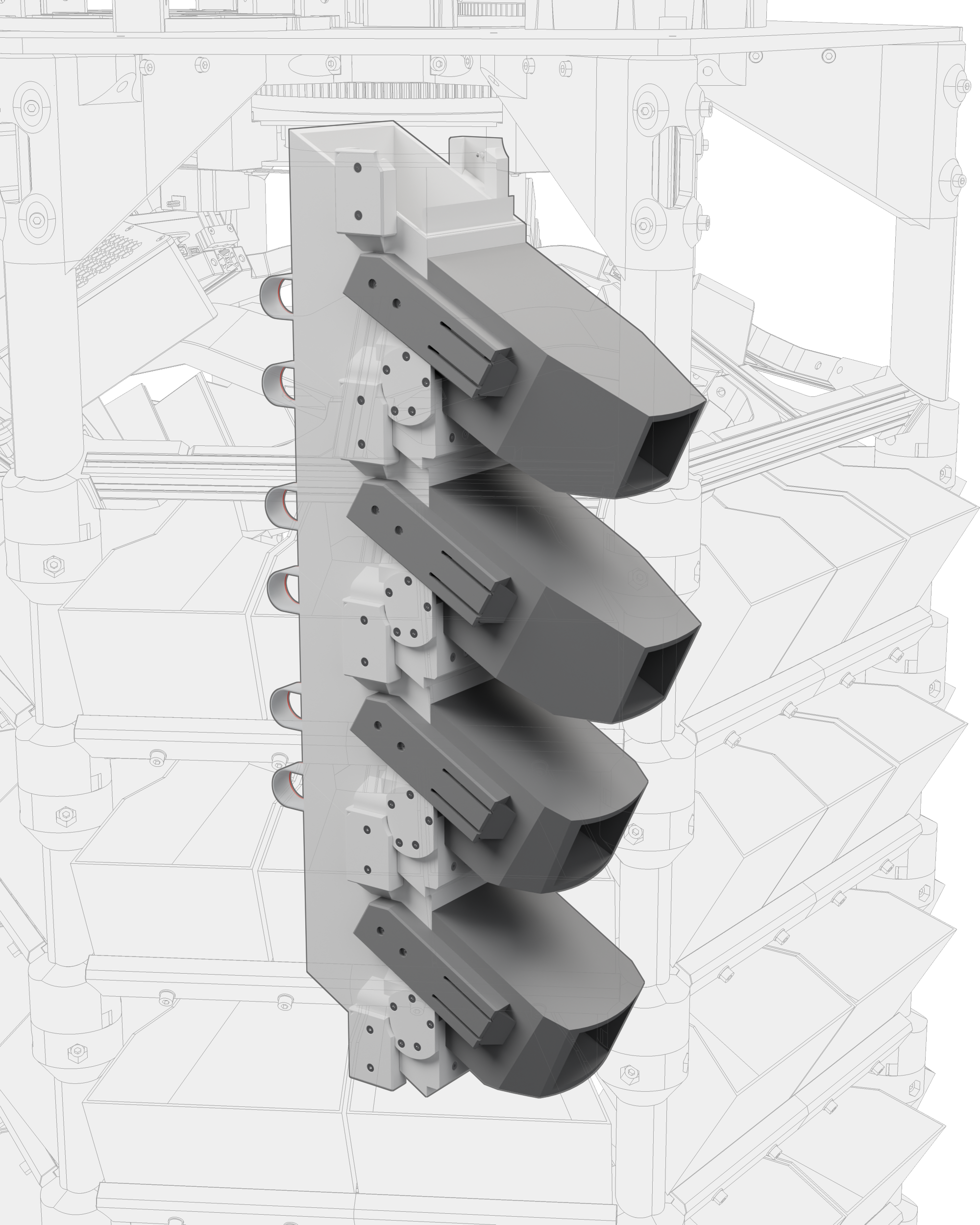

The chute, picked out inside the rings of bins — Chute

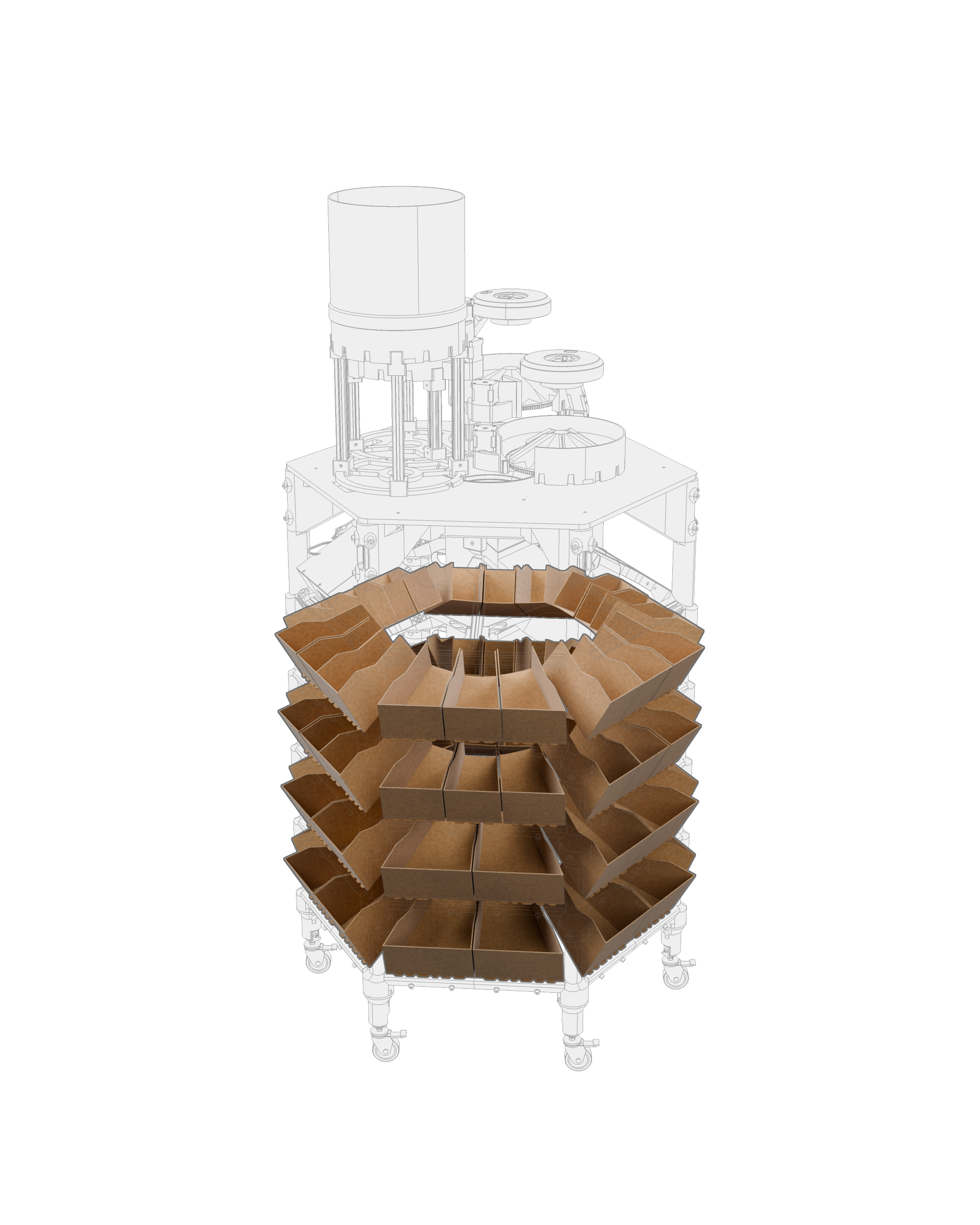

The rings of bins, picked out in the machine — Bins

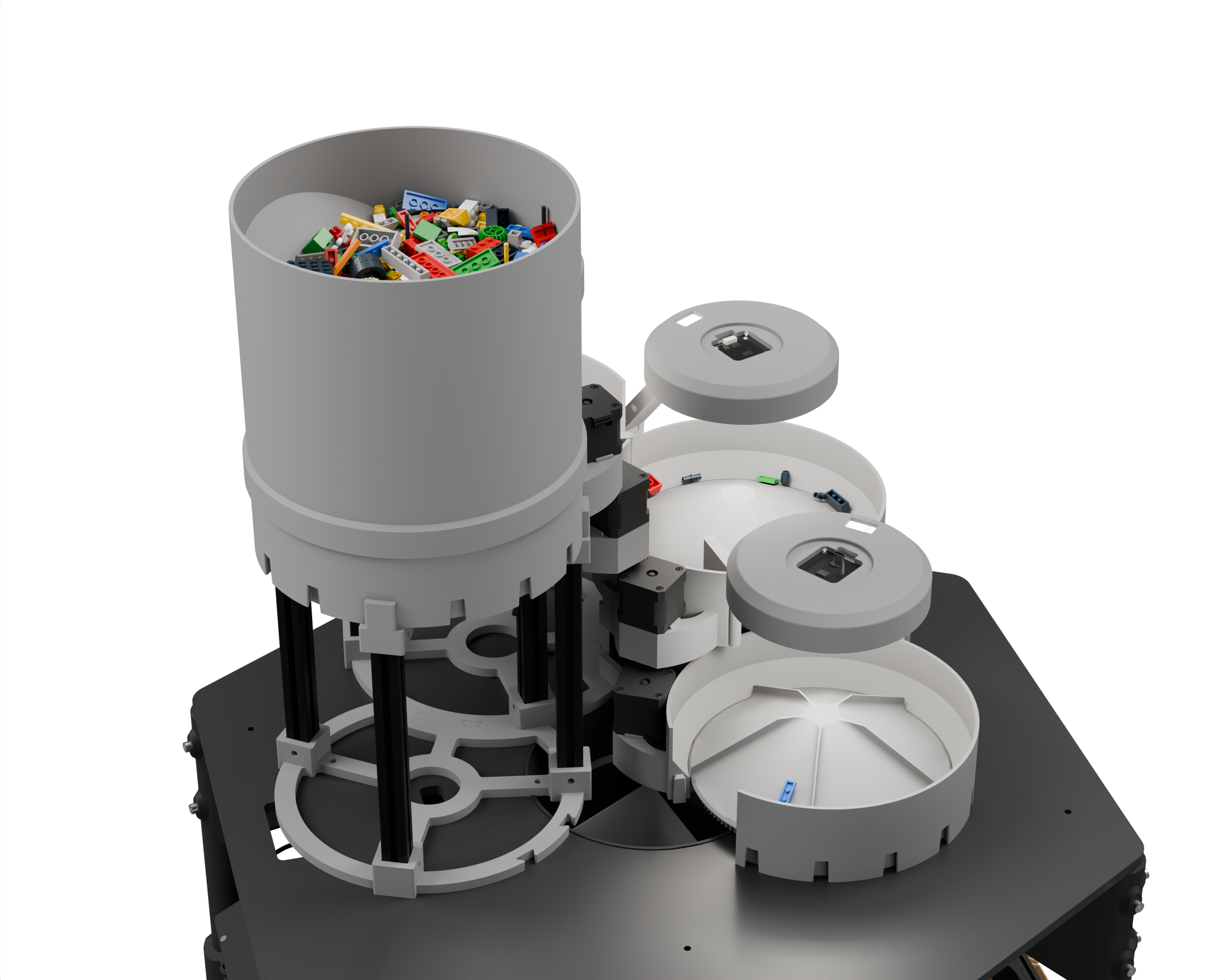

The bucket full of LEGO pieces beside the rotary feeders — Bucket and feeders

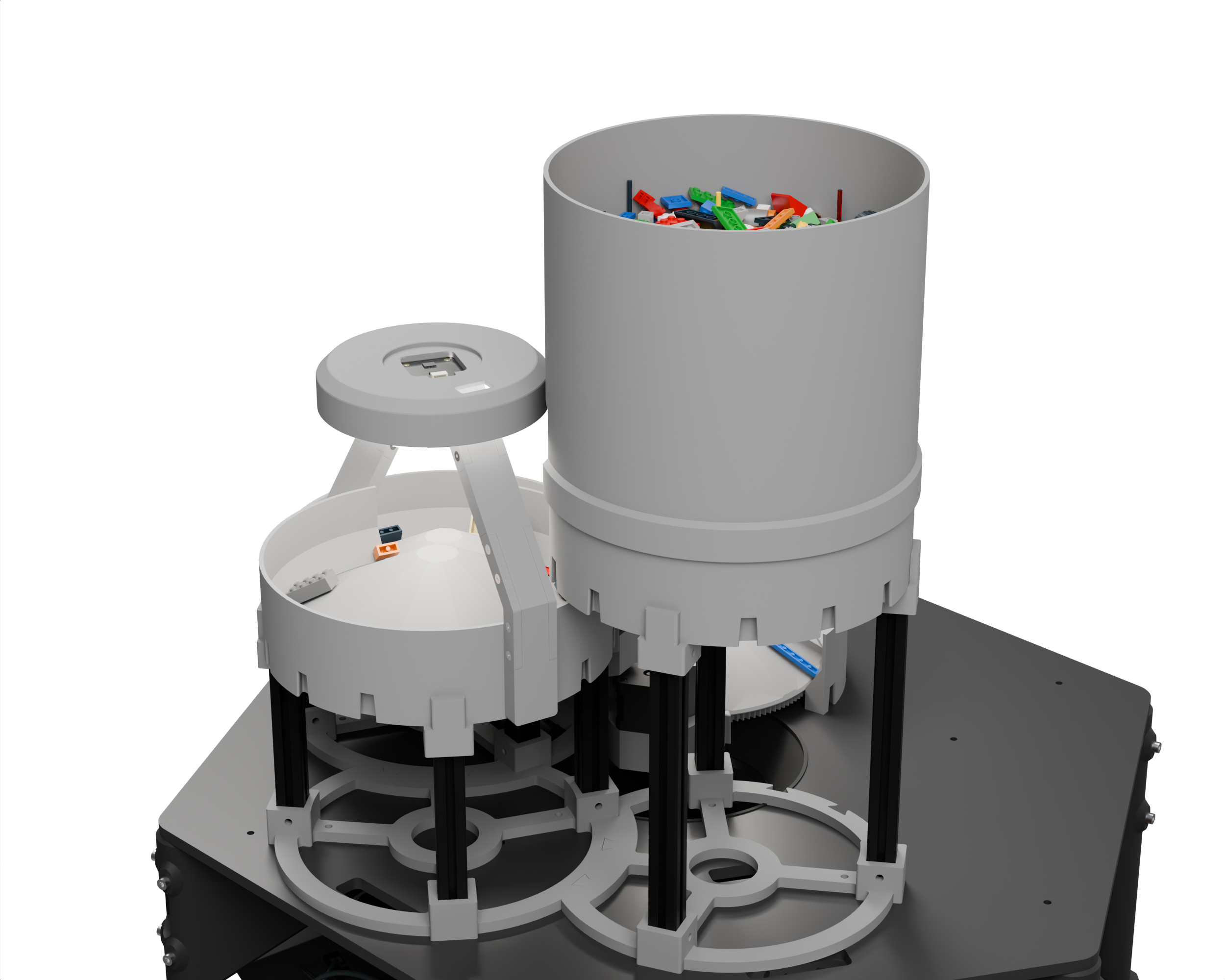

The bulk bucket over the rotary feeders — Bulk bucket

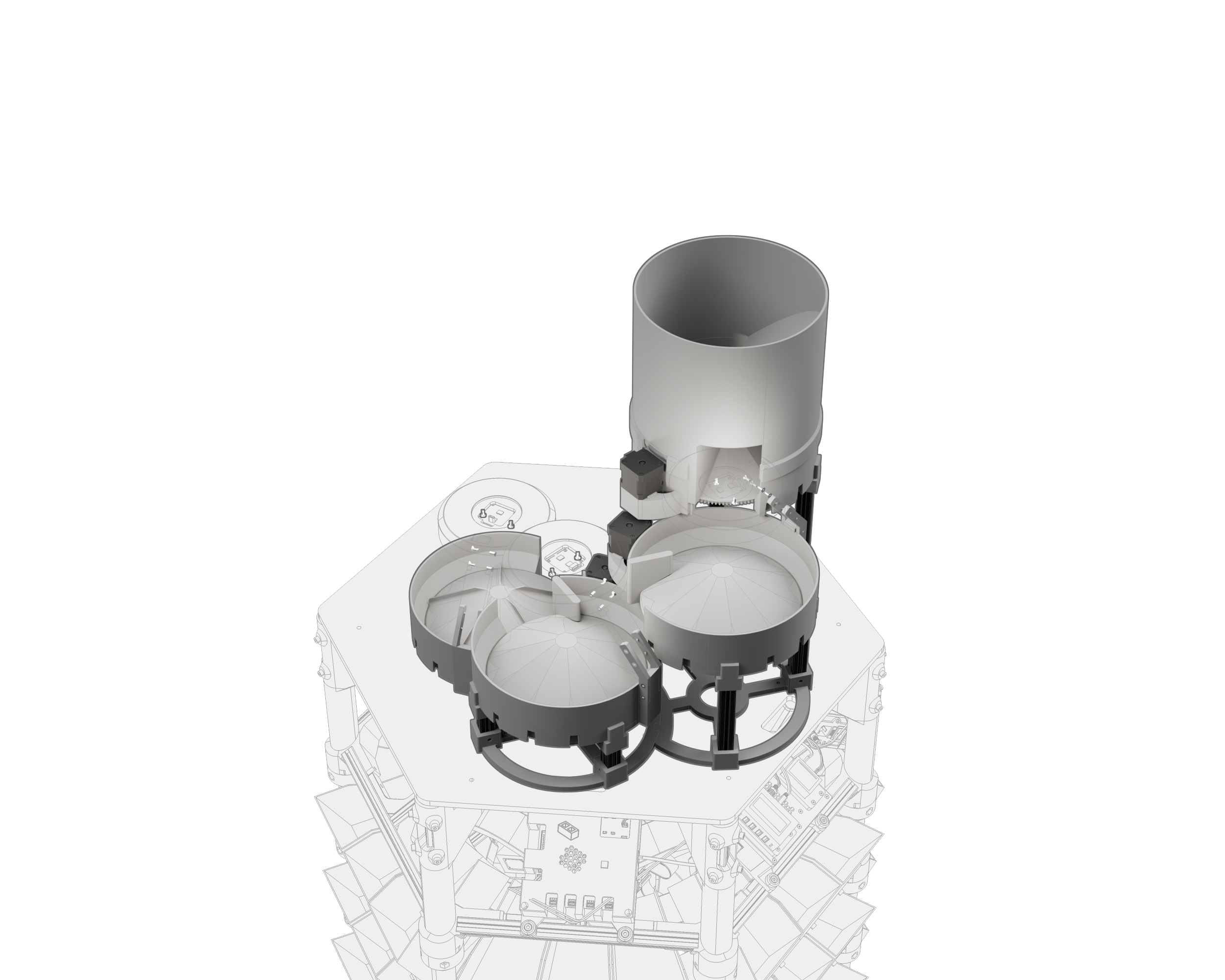

The rotary feeders from behind, picked out on the top of the machine — Feeders from behind

The Sorter from the front — Front

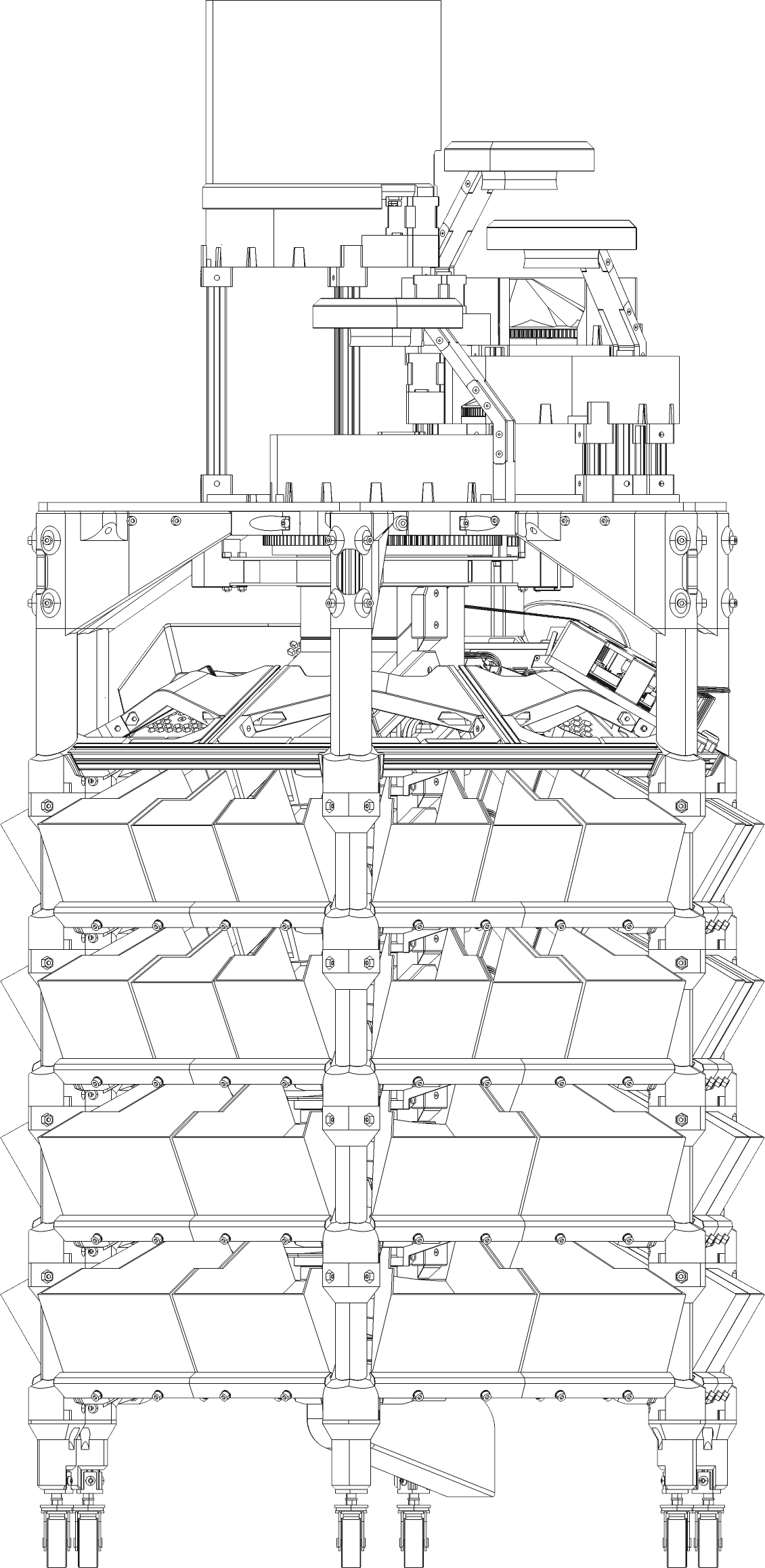

The Sorter from the side — Side

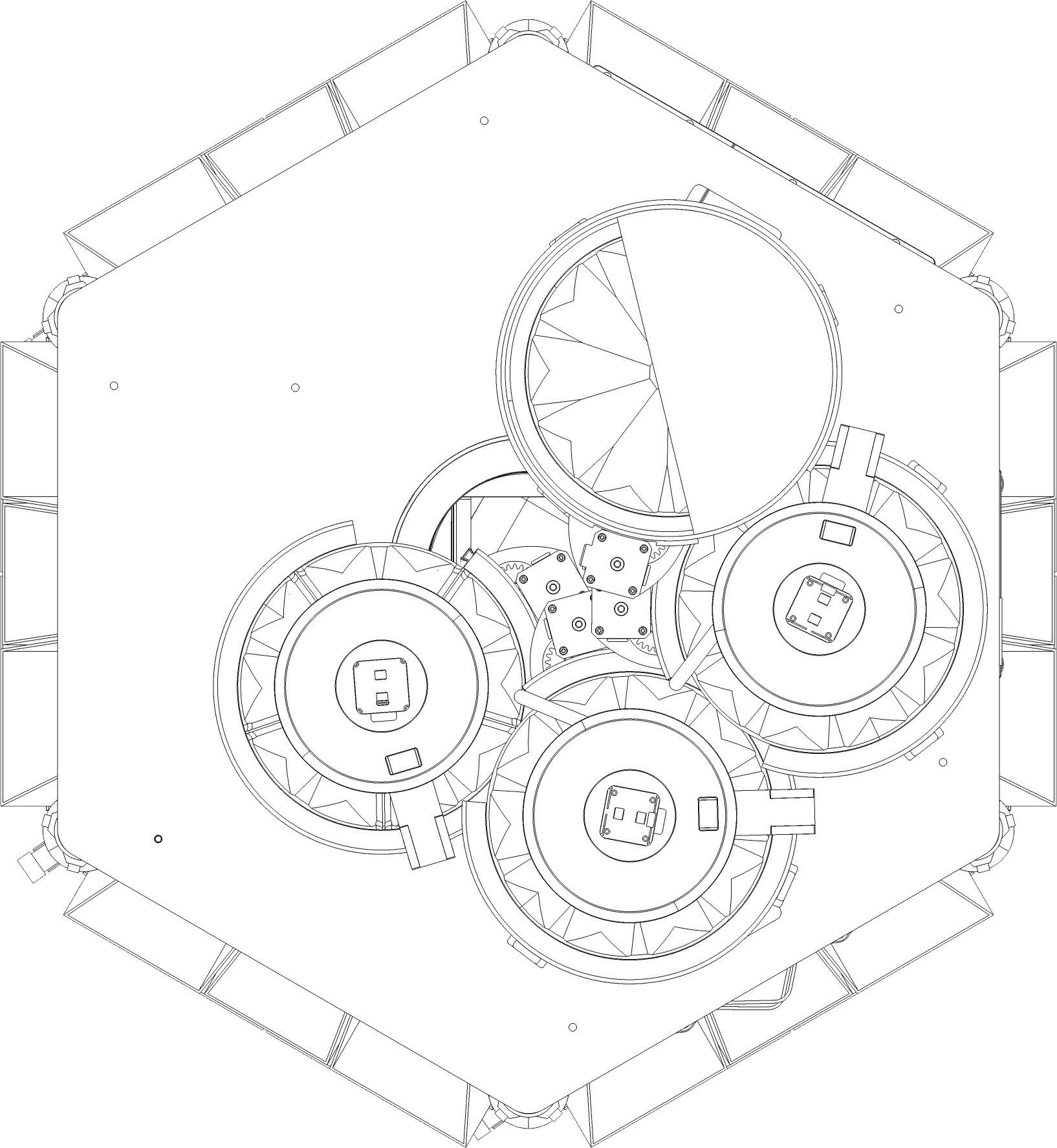

The Sorter from above — Top

See it in action, uncut

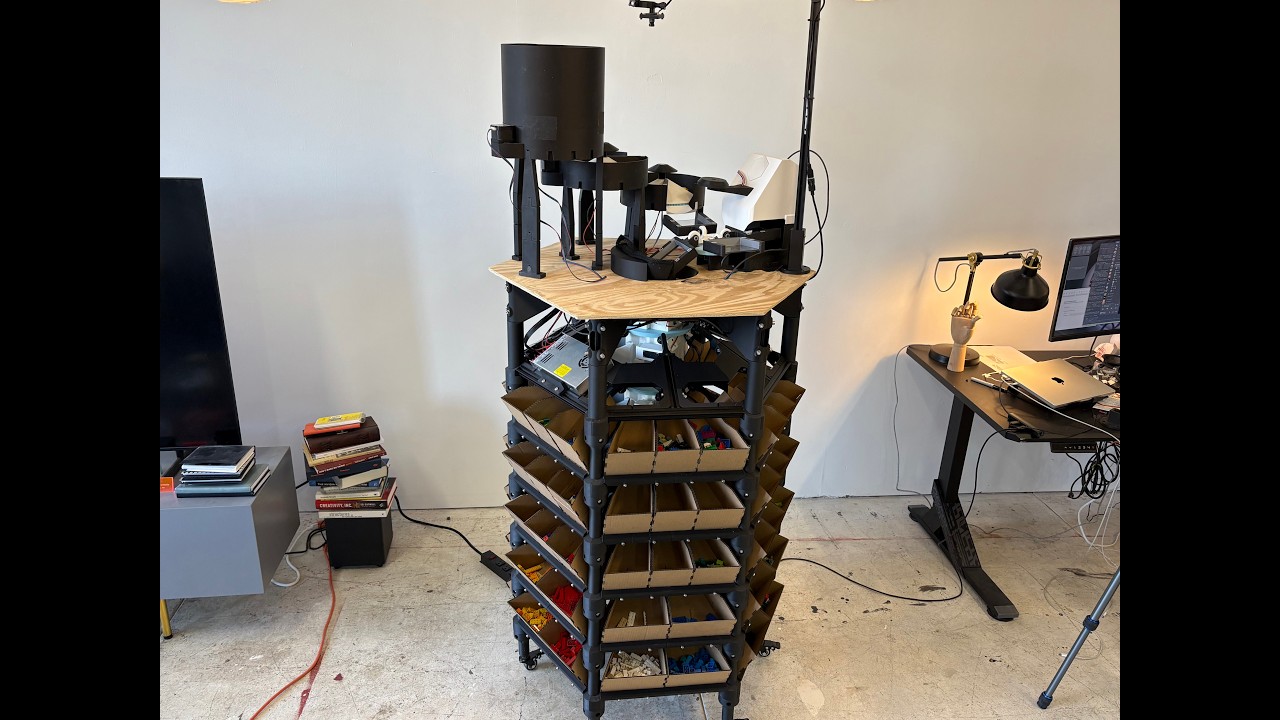

The Sorter running, an earlier revision of the machine

Video · 29 March 2026

Sorter V2 uncut footage

A much outdated revision of the machine.

Kits

Kits for the basically Sorter will be going into production soon.

March 2027

first shipments, targeted

The Future

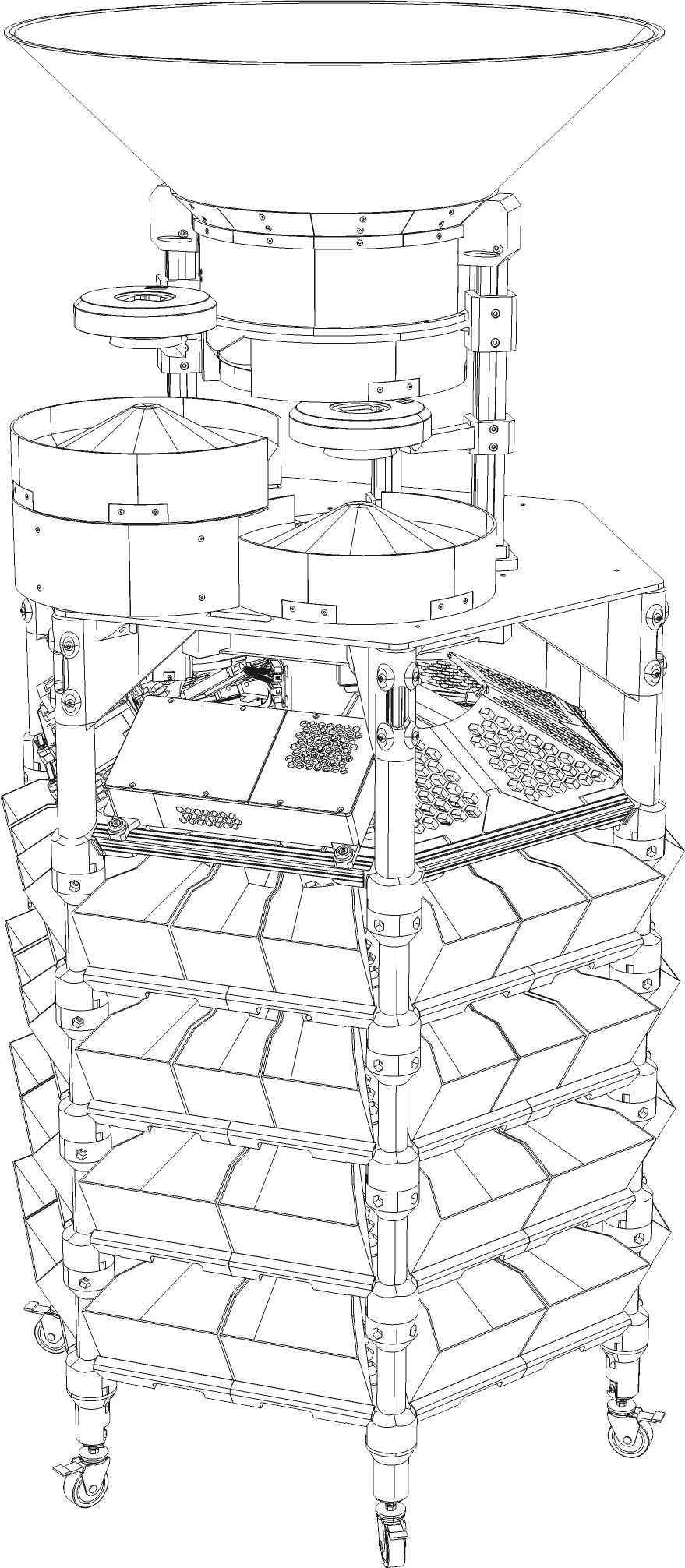

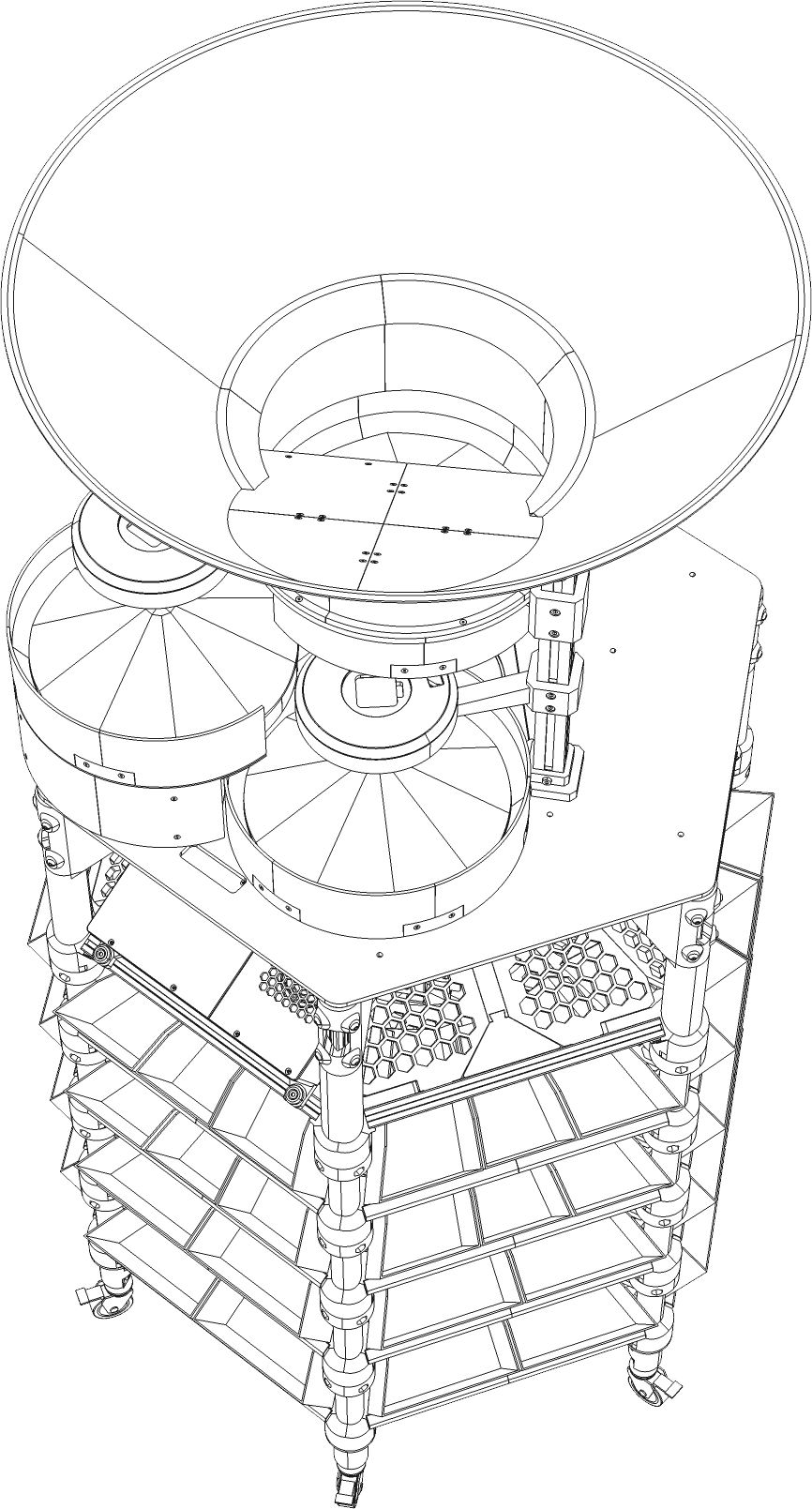

The Sorter with the big funnel, drawn in lines

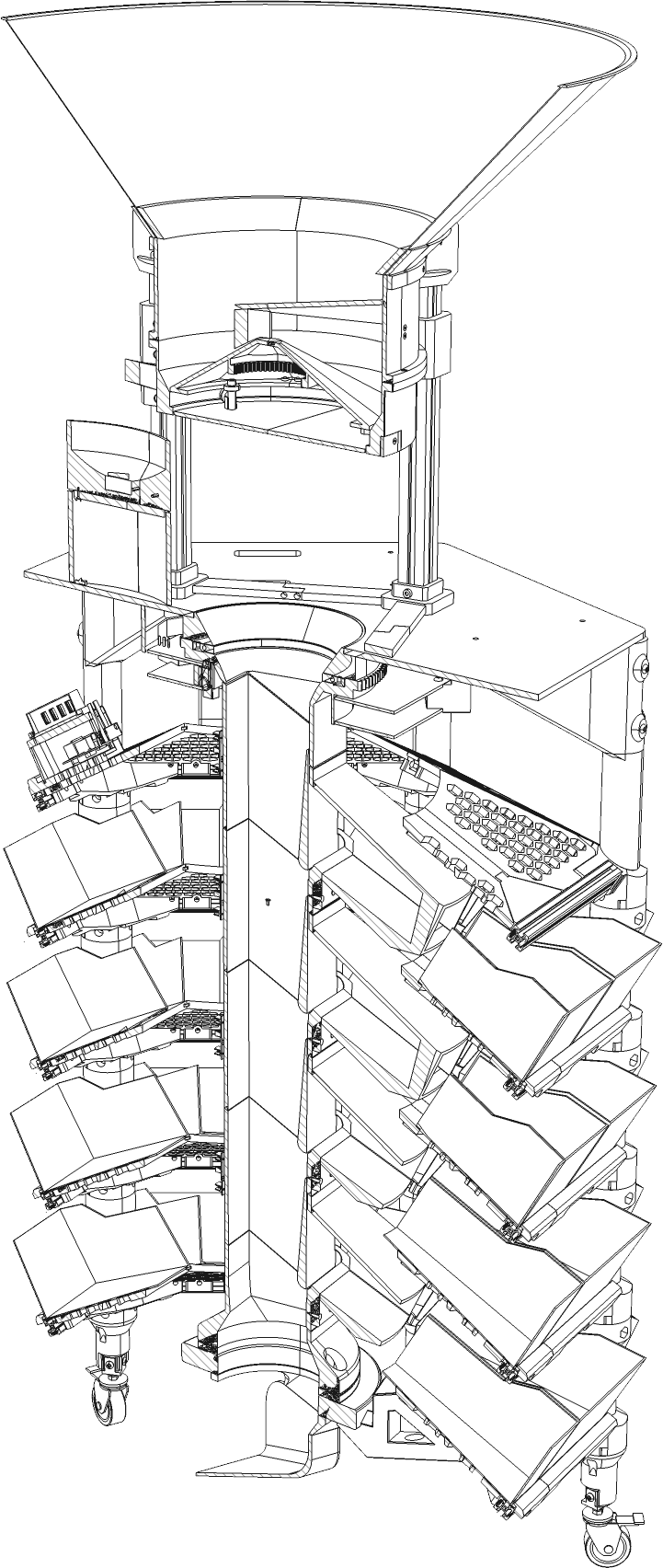

A section through the Sorter, from the funnel down the chute

The Sorter from above, the big funnel over the feeders and bins

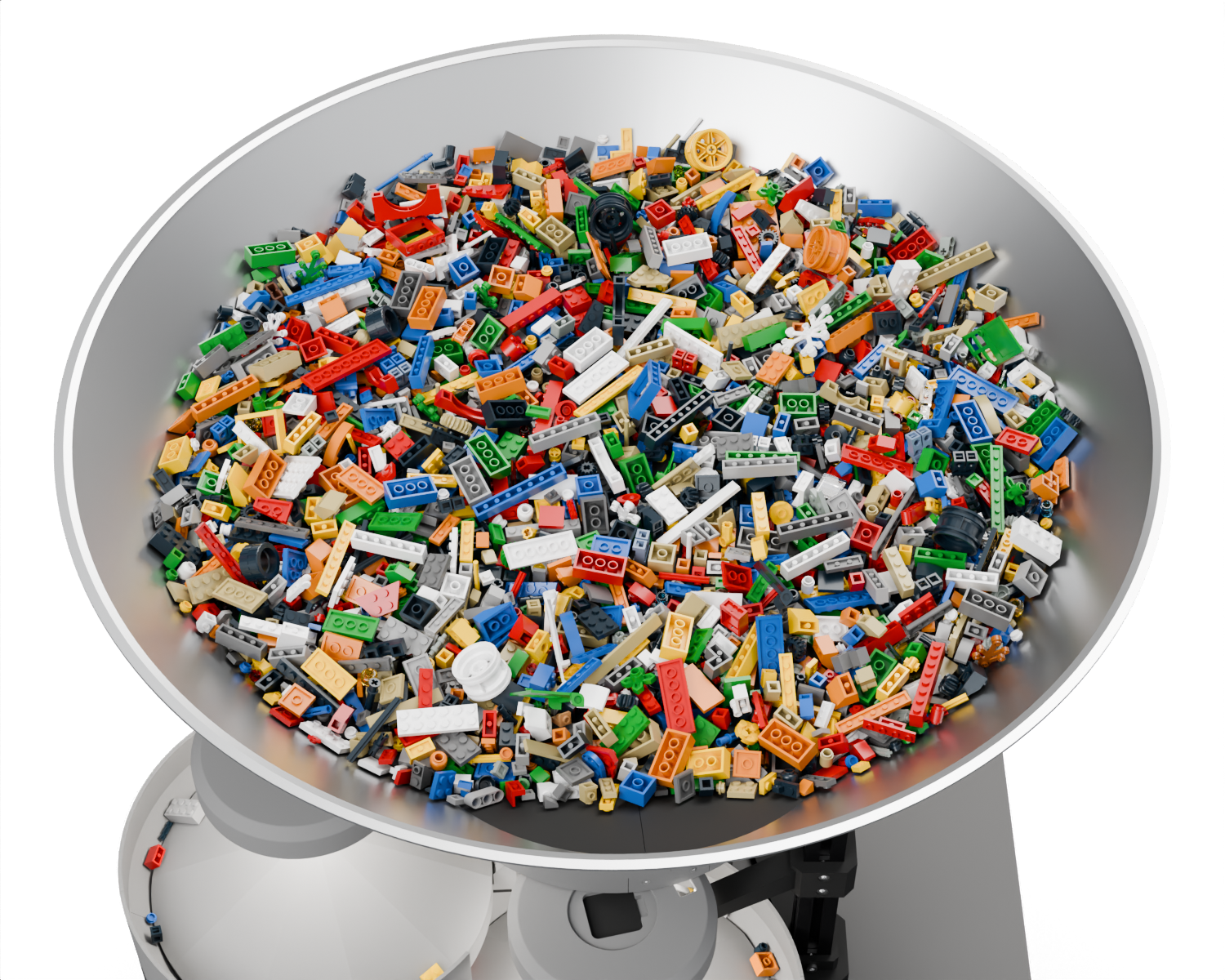

The big funnel full of LEGO pieces

The big funnel over the two feeders
